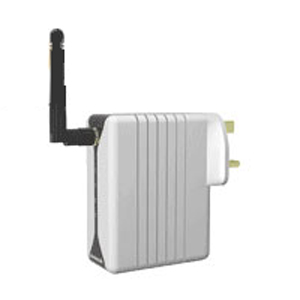

Aztech Homeplug HL105EW 54Mbps Wireless Extender (1pc)

Features

• A truly portable access port
• Wireless data transfer rate of up to 54Mbps
• Overcomes wireless problems of blind spots and thick wall penetration
• HomePlug distance of up to 200m point-to-point
• Extends wireless network coverage
• Enhanced security with WEP and WPA via Wireless LAN for maximum security from eavesdropping or hacking

Specifications
Standards

• HomePlug 1.0 standard
• IEEE 802.11b/g standard
• IEEE 802.3 10/100 Base-T-Ethernet

Range

• 85Mbps over powerline
• 54Mbps over Wireless

Antennae

• 1 detachable 3dbi

Transmit Power

• 20dBm

LED Indicators

• Power
• PL-Act
• Wireless
• Ethernet

Security

• 56-bit DES encryption (Powerline)
• WPA/ WEP (Wireless)

External Interface

• Ethernet LAN Port

Environment

• Operating: 0°C to 40°C
• Storage: -20°C to 60°C
• Environment: - 10% to 70% Humidity (Non-Condensing)

Physical Dimensions

• Weight: 190g
• Dimensions: 90(H) x 68(W) x 34(D) mm

Power Consumption

• 6.5W, 0.1A

Operating Systems

• O/S independant
• Configuration Utility Requirement:
  Microsoft Windows® 98SE®/ME®/2000®/XP®/Vista®

Package Contents

• 1 HL105EW
• 1 RJ-45 Ethernet Cable
• 1 Resource CD
• 1 User Manual
