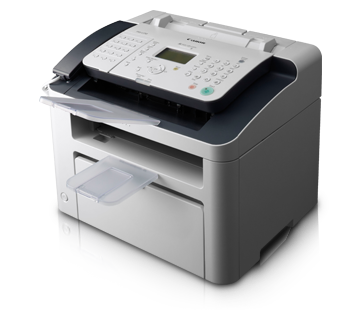

Canon Fax L170 Fax Machine



Specifications for FAX-L170



Print
Printing Method Monochrome Laser
Print Speed (A4 / Letter) 18 / 19ppm
Print Resolution Up to 600 x 600dpi
1200 (equivalent) x 600dpi
Warm-up Time (From Power On) 14secs. or less
First Printout Time (FPOT) Black: Approx. 7.8secs. (A4), 7.7secs. (LTR)
Recovery Time (From Sleep Mode) Approx. 3.5secs.
Print Language / Emulation UFR II LT
Print Margins Top: 5mm, bottom: 6mm, left: 5mm, right: 5mm (Other sizes than Envelope)
10mm - top, bottom, left and right (Envelope)
Print Features Watermark, Page composer, Toner saver
Copy
Copy Speed LTR: 12.4cpm (copies per minute)
A4: 11.8cpm (copies per minute)
Copy Resolution 600 x 600dpi
First Copy Time (FCOT) Black: Approx. 22.3secs. (A4), 21.3secs. (LTR)
Maximum Number of Copies Up to 99 copies
Reduce / Enlargement 50 - 200% in 1% increments
Copy Features Density adjustment, Toner saver
Fax
Modem Speed Up to 33.6Kbps
Fax Resolution Up to 200 x 400dpi
Compression Modes MH, MR, MMR
Memory Capacity*1 Up to 512 pages
One-Touch Dial 30 dials
Speed Dial (One Touch + Coded dials) Up to 130 dials
Group Dials / Destinations Max. 129 dials / Max. 129 destinations
Sequential Broadcast Max. 140 destinations
Receive Mode Fax only, Manual, Answering, Fax / Tel Auto switch
Memory Backup Yes, 5 minutes
FAX Features Fax Forwarding, Dual Access, Remote Reception, PC Fax (TX only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports
Paper Handling
Auto Document Feeder 30 sheets (80g/m2 or less)
Available Paper Size for ADF A4, B5, A5, B6, Letter, Legal, Statement
Min. 127 x 139.7mm to Max. 216 x 356mm
Paper Input Plain Paper
(60 - 80g/m2):		 150-sheet cassette
Paper Output 100 sheets (face down)
Paper Sizes A4, B5, A5, LGL, LTR, STMT, EXE, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, FLS, 16K, Postcard, Postcard without folding line, Tetrahedral Postcard
Envelope: COM10, Monarch, C5, DL,
Custom (Min. 76.2 x 127mm to Max. 216 x 356mm)
Paper Types Plain, Heavy, Recycled, Transparency, Label, Envelope
Paper Weight 60 to 163g/m2
Connectivity and Software
Standard Interface(s) USB 2.0 High Speed
OS Compatibility Windows 7 (32 / 64 bits*2), Windows Vista (32 / 64 bits*2),
Windows XP (32 / 64 bits*2), Windows 2000
Mac® OS X 10.4.9 & up*2, Linux*3
Software Included Printer driver, Fax driver
General Specification
CPU Canon Custom Processor 133MHz
Memory 64MB (Max.)
LCD Display 5-line B/W LCD
Dimensions (W x D x H) 372 x 303 x 303mm (cassette closed)
372 x 400 x 303mm (cassette opened)
Weight 8.2kg (with cartridge)
8.8kg (without cartridge)
Power Consumption Max.: 1020W or less
During Operation: Approx. 400W (in copying)
During Standby: Approx. 10W
During Sleep: Approx. 1.5W
TEC (Typical Electricity Consumption) 0.6 kWh/W
Noise Levels Sound pressure level
(Bystander's position):		 53dB in B/W printing (reference value)
Sound power level: 6.5B or less in B/W printing
Sound pressure level
(Bystander's position):		 Inaudible*4 (reference value)
Sound power level: 4.3B or less
Operating Environment Temperature:  50 to 86°F (10 to 30°C)
Humidity: 20% to 80% RH (no condensation)
Power Requirements AC 220 to 240V: 50 / 60Hz
Toner Cartridge*5 Cartridge 328: 2,100 pages
Bundled cartridge: 1,000 pages
Monthly Duty Cycle*6 Up to 8,000 pages

Specifications are subject to change without notice.

*1 Based on ITU-T #1 Chart (standard mode).
*2 Drivers for Mac OS and Windows 64-bit OS can be downloaded from www.canon-asia.com when available.
*3 Linux supports printing only.
*4 "Inaudible" means each Sound pressure level at bystander's position is less than the absolute criterion value about background noise of ISO 7779.
*5 Toner cartridge yield in accordance with ISO / IEC 19752.
*6 Monthly Duty Cycle value provides a means for comparison of product robustness in relation to other Canon Laser Devices, and does not refer to actual maximum image output per month.



Price: MYR1,450.00
