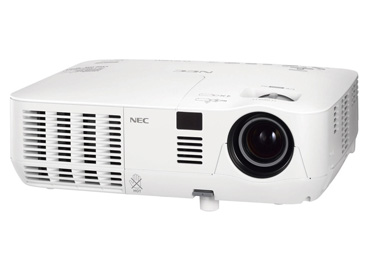

NEC V260G

Optical

Display Technology    DLP (0.55" DMD)
Light Output (Lumens)
2600 normal / Eco = approx. 70% of normal mode

Resolution

Native: SVGA 800 x 600
Maximum: UXGA 1600 x 1200
Contrast Ratio: (up to) 2000:1
Lamp Type: 180W AC
Lamp Life: (up to) 3500 hours normal / 5000 hours eco

Screen Size (diagonal): 33 to 300 in. / 0.84 to 7.6m
Throw Ratio: 1.95 to 2.15

Projection Distance: 3.9 to 39.4 ft. / 1.2 to 12m
Projector Angle: 12.7° tele / 14° wide

Lens

Zoom: 1 to 1.1 Focus Manual
F number, fnumber: F=2.41 to 2.55, f=21.83 to 24mm
Keystone Correction: +/- 40°

Signal Compatibility/Connectivity

Scan Rate
Horizontal: 15-100 kHz
Vertical: 50-120 Hz

Supported Video Standards

NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility: 480p, 576i, 576p, 720p, 1080i
PC Signal Compatibility: SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Macintosh Compatibility: Yes

Input/Output Terminals

RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E

RGB2(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E

RGB3(digital): HDMI

Video 1: RCA

Video 2: S-Video

Audio: 1/8 in. stereo

Monitor out: VGA 15-pin D-sub

Audio out: Yes (variable)

Audio: 7W speaker

External Control: RS-232, IR, Wired LAN

Sync Compatibility: Separate Sync / Composite Sync / Sync on G

Networking: RJ-45 Monitoring


Electrical

Power Requirements: 100-240V AC, 50/60 Hz
Input Current: 2.6A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 278W / 216W / 4W / 0.5W


Mechanical

Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH): 12.2 x 3.7 x 9.7 in. / 310 x 95 x 247mm
Net Weight: 5.5 lbs. / 2.5 kg
Fan Noise: 34 dB normal / 31 dB eco


Environmental

Operating Temperature: 41-104°F / 5-40°C
Storage: -4-122°F / -20-50°C


Limited Warranty

2 years


Additional Features

AutoSense

Built-in wall color correction

Advanced AccuBlend

Kensington lock slot

Image magnification

Auto Power On

Sleep timer

Closed Captioning

Virtual Remote

ECO Mode technology

Discreet source keys

Direct power-off

BrilliantColor

Carvon savings meter

3D ready


Ships With

Remote control
Batteries
Power cord
RGB signal cable
Lens cap
User manual
Quick Start Guide
Product registration card
6-segment color wheel


3D Ready

When combined with active shutter glasses (NP01GL), this projector uses DLP Link™ technology, developed by Texas Instruments, to create 3D images.
