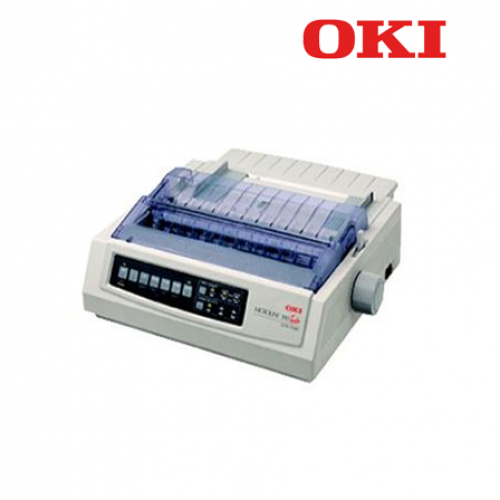

OKI 24 PIN DOT MATRIX PRINTERS MICROLINE 390 TURBO Plus

Printing Method Serial Impact Dot Matrix Method

Print Head 24 Pin

Dot Wire Diameter 0.2 mm

Print Direction Bidirectional/Unidirectional printing, Short line-seeking printing

Graphic Resolution Max. 360(H) x 360(V) dpi

Print Speed Utility : 260 cps, Letter Quality : 87 cps

Line Feed Pitch 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.42mm(n/60 ") (n=0-127), n x 0.35mm(n/72 ") (n=1-85), n x 0.14mm(n/180 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255), n x 0.07mm(n/360 ") (n=0-255)

Feed Speed 4.5 inches per second

Feed Rate 4.23mm(1/6”) line feed: Approx. 46 milliseconds

Paper Route Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand

Character Pitch Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi

Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional

Printing Width 80 characters/line at ANK 10 cpi

Interface IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)

Emulation ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation

Supported OS (Click here for latest OS) Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64

Receive Buffer Max. 128KB

Resident Font Utility, LQ Gothic, LQ Roman, LQ Courier, LQ Swiss, LQ Prestige, LQ Orator, LQ Swiss Bold, Scalable Roman, Scalable Courier, Scalable Swiss

Font Style Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline

1-D Barcode UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET

Paper Type Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label

Paper Weight Adjustment Manual

Paper Size Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm

Single part paper: Width 99.1-216.0mm x Length 99.1-356.0mm

Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm

Paper Weight Continuous paper : 45 - 90 gsm

Single part paper : 45 - 90 gsm

Multi part paper : 35 - 40 gsm

Copy Capability Normal print mode: original + 4sheets(Total Thickness < 0.36mm)

Dimensions(WxDxH) 398 x 345 x 147 mm

Operating Environment Operating: 5 - 35 °C, 20 - 80 %RH

Storage: -10 - 50 °C, 5 - 95 %RH

No condensation

Power Source Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2%

Power Consumption Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 35W)

Power Save: < 1.7W

Noise Level Operating :Approx. 57 dBA

MTBF(Mean Time Before Failure) 10,000 hours

Ribbon Life Black : 2 million characters

Print Head Life Approx. 300 million strokes/ pin

In the Box Ribbon cartridge, Power cable, CD-ROM, Others
